DipTrace

Author DipTrace:

Novarm Limited

Licence:

Shareware

Updated:

15.07.2011

Have you found a new version? Please let us know!

Rating - DipTrace - 5.5 / 6 (2 votes)

Description DipTrace:

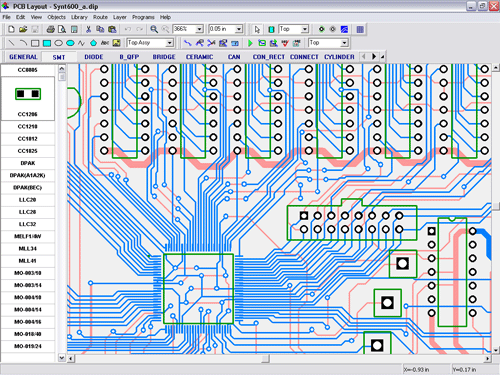

DipTrace - PCB design with easy to use manual route and autorouter. Schematic - creates schematic and exports netlist to PCB. ComEdit - pattern editor. SchemEdit - component editor. Draw Schematic symbols and attach patterns to them.

DipTrace is compatible with Windows XP 32-bit, Windows Vista 32-bit, Windows 7 32 bit, Windows 2003 32-bit, Windows 2000.
